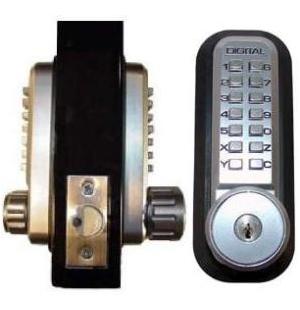

Lockey 2230DC-KO Mechanical Digital Double Sided Combination Spring Latch Door Lock With Key Override

Lockey 2230DC KO Mechanical Digital Double Sided Combination Spring Latch Door Lock With Key Override is a 2230DC lock with a key override. This is a mechanical door lock that does not require wires, batteries or electricity.

This lock is perfect to replace your existing hardware or for brand new doors. This lock is most commonly used on gates and pool areas. This lock has the spring latch function and will lock everytime the door closes. These are easy to install and use, fit most doors and are weather resistant. The key override option is available for the OUTSIDE LOCK ONLY. Carries a 1 Year Warranty through the manufacturer.

Finishes available: Antique Brass, Bright Brass, Satin Chrome, Satin Nickel and Jet Black.

Features
Heavy Duty Security
Spring Latch-Locks Everytime The Door Closes
Covers A Standard 2 1/8" Hole
Fits All Doors 1 3/8" to 2 1/4" Thick
Will Fit Doors up to 3" thick with the Extension Kit
For Right Or Left Handed Doors/Changeable Handling
Combination Is Easily Changed
Inside Knob is 1" Diameter (Oversize Knob is Available)
Lock Only Dimensions 5 5/8" Tall X 1 5/8" Wide
Total Lock Dimensions W/Trim Plates 6 1/2" Tall X 2 1/2" Wide

Combination can be 2-7 digits in length with tumblers provided. If you would like your combination to be 0-9 digits in length, please purchase the Tumbler Kit.

If you are ordering more than 1 lock and would like them Keyed Alike, when choosing your finish please choose the one that is followed by Keyed Alike.

When ordering you will need to specify 2 3/8" OR 2 3/4" for the backset
How do I measure the backset? The backset is measured from the edge of the door to the center of the hole.

FREE SHIPPING WITHIN CONTIGUOUS US AND 1 YEAR MANUFACTURER WARRANTY

Installation Instructions Page 1

Installation Instructions Page 2

Installation Template for 2 3/4" Backset

Installation Template for 2 3/8" Backset

How to Change the Code
