Lockey 2230DC Keyless Mechanical Digital Double Sided Combination Spring Latch Door Lock

Lockey 2230DC Keyless Mechanical Digital Double Sided Combination Spring Latch Door Lock is a bump proof, pick proof, mechanical keyless door lock that does not require wires, batteries or electricity. This lock is perfect to replace your existing hardware or for brand new doors.

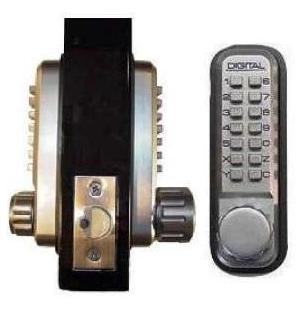

This lock is most commonly used on gates and pool areas. This lock has the spring latch function and will lock everytime the door closes. These provide keyless security, are easy to install and use, fit most doors and are weather resistant. They carry a 5 Year Warranty through the manufacturer. Photo shown with oversized knob on right side of the photo.

Finishes available are Antique Brass, Bright Brass, Satin Chrome, Satin Nickel, Jet Black, and White.

Features
Bump Proof
Pick Proof
Heavy Duty Security
Spring Latch-Locks Everytime The Door Closes
Covers A Standard 2 1/8" Hole
Fits All Doors 1 3/8" to 2 1/4" Thick
Will Fit Doors up to 5" thick with the Extension Kit
Knob is 1" Diameter (Oversize Knob is Available)
For Right Or Left Handed Doors/Changeable Handling
Combination Is Easily Changed
Lock Only Dimensions 5 5/8" Tall X 1 5/8" Wide
Total Lock Dimensions W/Trim Plates 6 1/2" Tall X 2 1/2" Wide

Combination can be 2-7 digits in length with tumblers provided. If you would like your combination to be 0-9 digits in length, please purchase the Tumbler Kit.

When ordering you will need to specify 2 3/8" OR 2 3/4" for the backset
How do I measure the backset? The backset is measured from the edge of the door to the center of the hole.

FREE SHIPPING WITHIN CONTIGUOUS US AND 5 YEAR MANUFACTURER WARRANTY.

Installation Instructions Page 1

Installation Instructions Page 2

Installation Template for 2 3/4" Backset

Installation Template for 2 3/8" Backset

How to Change the Code

Lockey Warranty
